Build Your First Flow Stats Profile

Create a reusable Health configuration and give two FlowStats owners independent runtime values.

Audience
New Flow Stats users
Time
15 minutes
Requires
A Unity scene with two test GameObjects
Modules
Flow Stats
On this page

Goal

Create one Profile containing a bounded Health Resource, assign it to two FlowStats components, and verify that shared authoring produces independent live state.

Prerequisites

  • Basic familiarity with creating ScriptableObject assets and adding components.
  • A scene with two empty GameObjects named Player A and Player B.

What You Will Build

Both owners will reference one Profile. Player A will start at 60 Health. Player B will use an instance override and start at 25. Changing either runtime value will not change the other.

Steps

1. Create the Profile and Health definition

  1. Create Flow Core > Stats > Profile and name it Standalone Stats Profile.
  2. Create Flow Core > Stats > Resource and name it Health.
  3. Set Health Minimum to 0, Maximum to 100, and Default Initial Normalized to 0.6.
  4. Select the Profile, choose Open Full Configuration, and add Health in its Resources module.
  5. Open Validation and validate the Profile.

Normalized 0.6 maps through the cached 0–100 range, so the default starting Current value is 60.

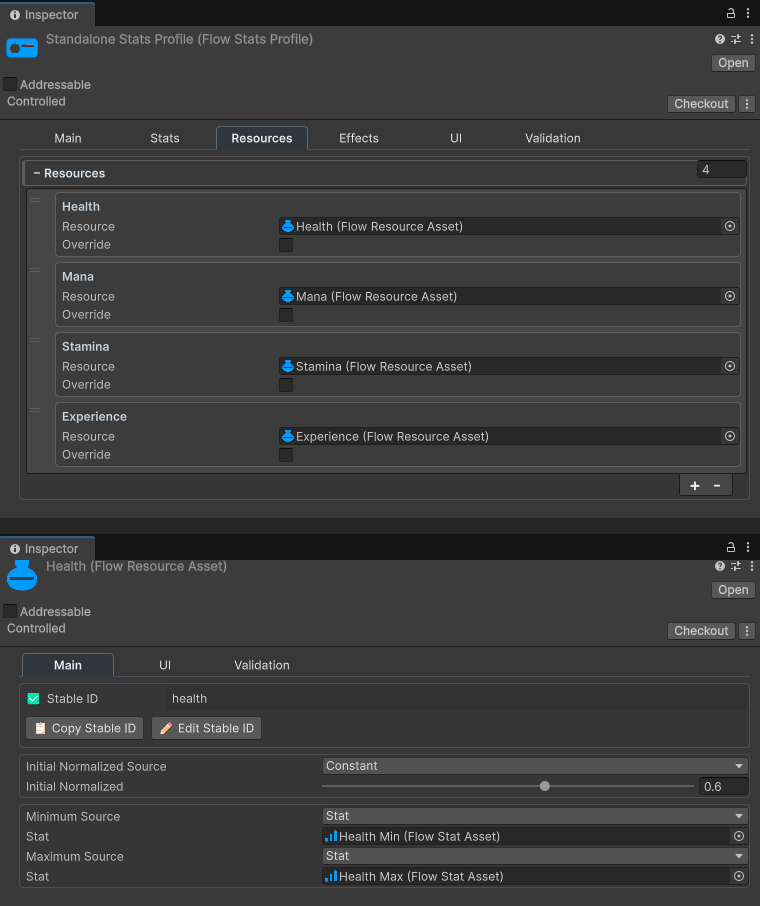

The Standalone Stats Profile lists Health, and the Health definition shows its stable identity.

The screenshot shows the shipped sample Profile’s Resources module, including its additional Resources and Stat-bound Health limits. The five steps above are the minimum setup required for this walkthrough.

2. Create two runtime owners

Add Flow Core > Stats > Flow Stats to Player A and Player B. On each component, choose Open Full Configuration and assign Standalone Stats Profile in Main.

The Profile and Resource assets are shared authoring data. Each component will create its own runtime snapshot when it initializes.

3. Override Player B’s starting Health

In Player B’s Flow Configuration window, open Overrides and expand Resources.

  1. Find Health.
  2. Enable Override Profile Value.
  3. Set Initial Normalized to 0.25.

Leave Player A unchanged so it continues to use the Profile value of 0.6.

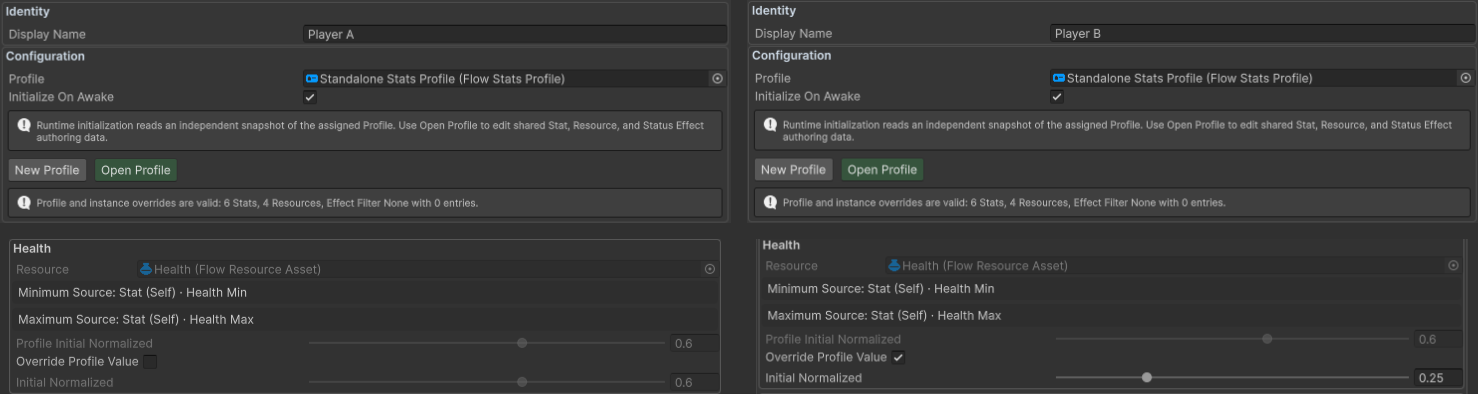

Two FlowStats components share one Profile while Player B overrides its initial Health.

4. Inspect the live values

Enter Play Mode and open Debug > Live Runtime in each component’s Flow Configuration window. Player A should show Health 60 / 100; Player B should show 25 / 100.

Use a supported Resource mutation from a graph or C# to change one owner. The other owner’s Health must remain unchanged.

Verify the Result

Common Mistakes

SymptomCheck
Both owners start at 60Confirm Override Profile Value is enabled and Initial Normalized is 0.25.
Both owners change togetherResolve and mutate a specific FlowStats component, not an authoring asset.
Health starts at zeroCheck the bounds and initial normalized value, then validate the Profile.
A Play Mode asset edit has no effectExit and re-enter Play Mode, or explicitly rebuild the runtime snapshot.
Profile validation failsCheck missing definitions, duplicate Stable IDs, and invalid Resource bounds.

What You Built

You created one reusable Profile, one bounded Resource definition, and two independent runtime owners. The instance override changed only Player B’s starting data; it did not duplicate the Profile.

Next Steps

Add Strength, Weapon Power, and a calculated Attack Power Stat to the same Profile.
